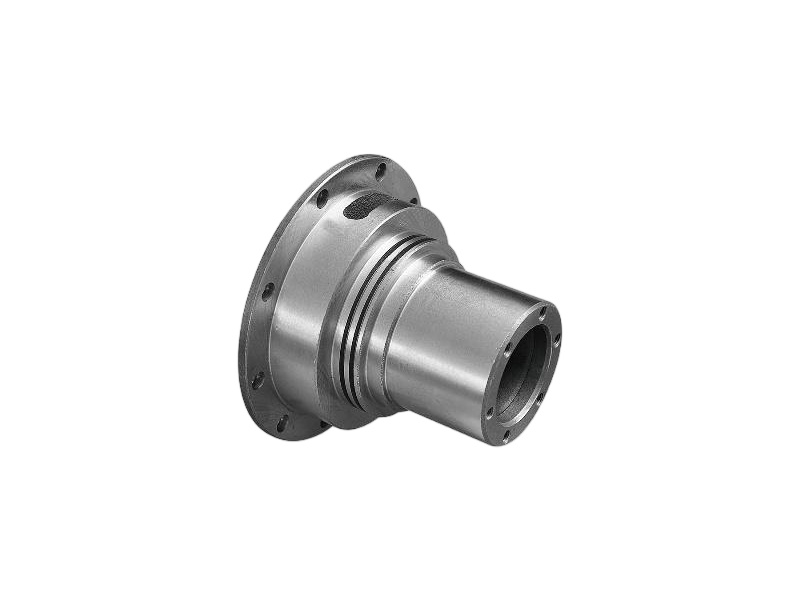

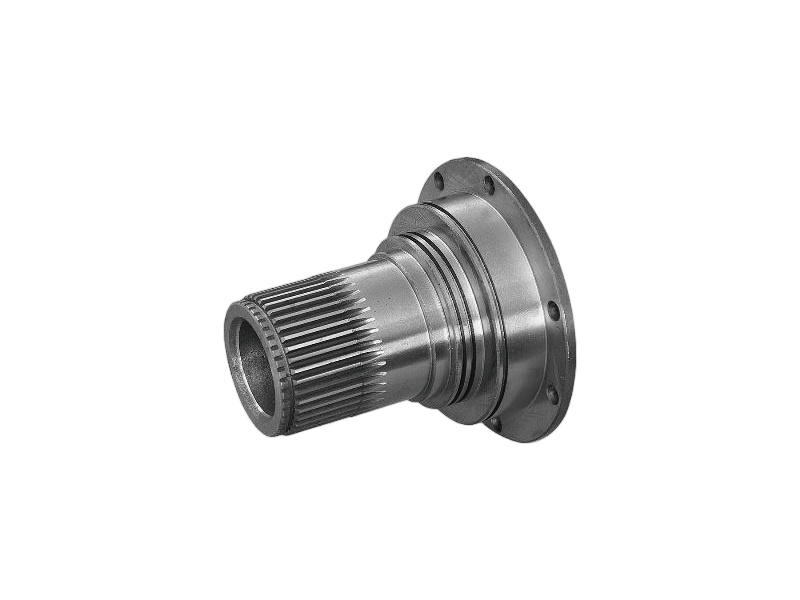

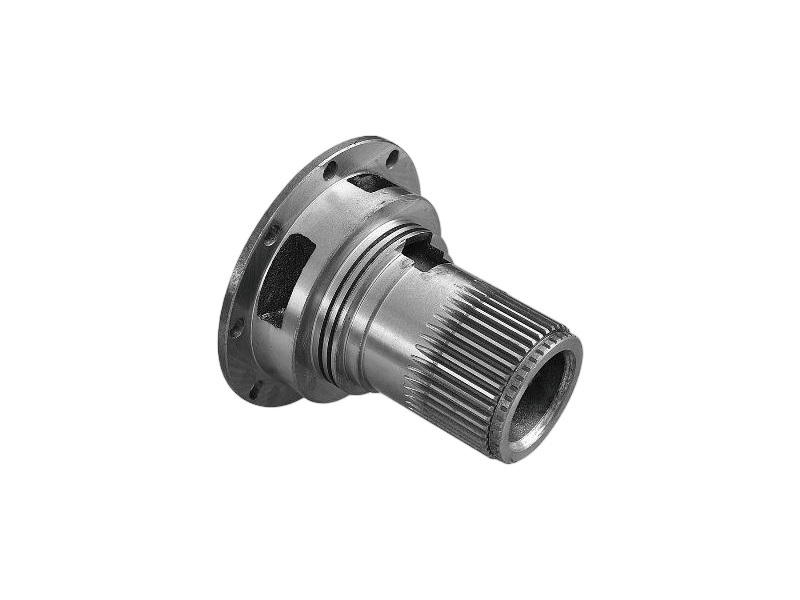

Guide wheel seat

Product Introduction

The guide wheel seat is the core positioning and support base inside the hydraulic torque converter. It provides a fixed installation point for the guide wheel and simultaneously undertakes axial positioning, radial limiting, and oil circuit guidance functions. It firmly locks the guide wheel in its operating position, ensuring coaxial operation and uniform clearance of the pump wheel, turbine, and guide wheel, preventing vibration, abnormal noise, and reduced transmission efficiency caused by operational deviation.

Made of high-quality alloy steel, it undergoes tempering hardening and precision grinding, resulting in high overall hardness, rigidity, pressure resistance, impact resistance, and resistance to deformation and loosening. The inner and outer diameters are precisely coaxial, the mating surfaces are smooth and wear-resistant, resistant to high oil temperature immersion and oil corrosion, and the dimensions perfectly conform to original factory standards, offering strong interchangeability and easy disassembly. It is an indispensable and crucial component for the stable operation of the torque converter.

Application Scenarios

• Construction Sites: Frequent low-speed starts and material handling operations; provides stable support for the guide wheel, ensuring stable torque increase and sufficient starting power.
• Heavy-Duty Mining Conditions: Steep slope climbing and heavy-load operations; withstands high-intensity torque and vibration, ensuring stable positioning and operation.
• Sand and gravel quarries and coal yards: Suitable for continuous, uninterrupted operation; high temperature resistant and wear-resistant, reducing torque converter high-temperature failures.
• Torque converter maintenance: Compatible with internal maintenance and replacement of torque converters for 3-ton, 5-ton, 6-ton, and 7-ton loaders, as well as assembly and use.
• Complex and harsh environments: Suitable for dusty, high-vibration, and high-oil-temperature working environments; dustproof and corrosion-resistant, extending the overall service life of the torque converter.
