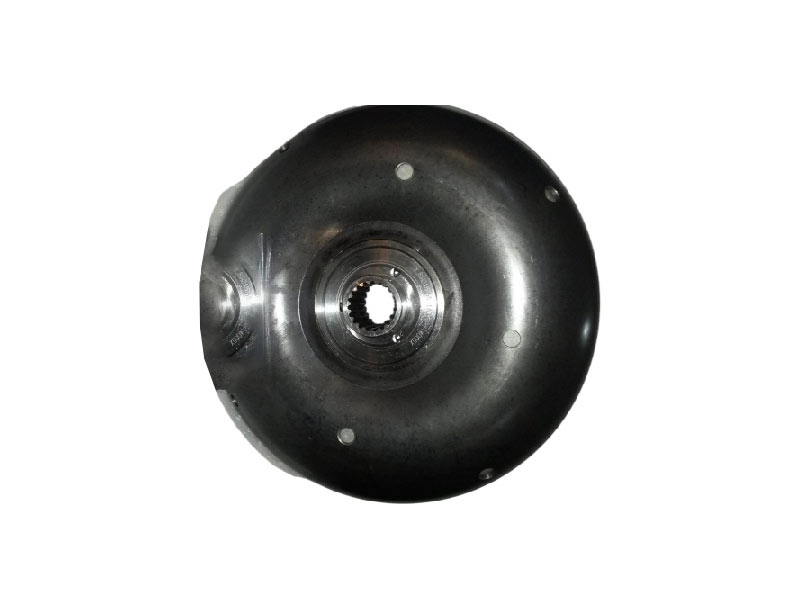

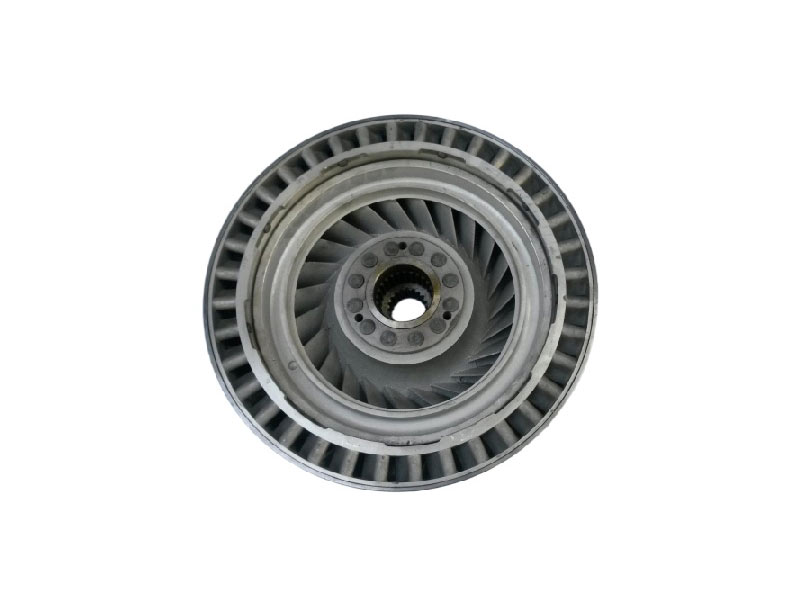

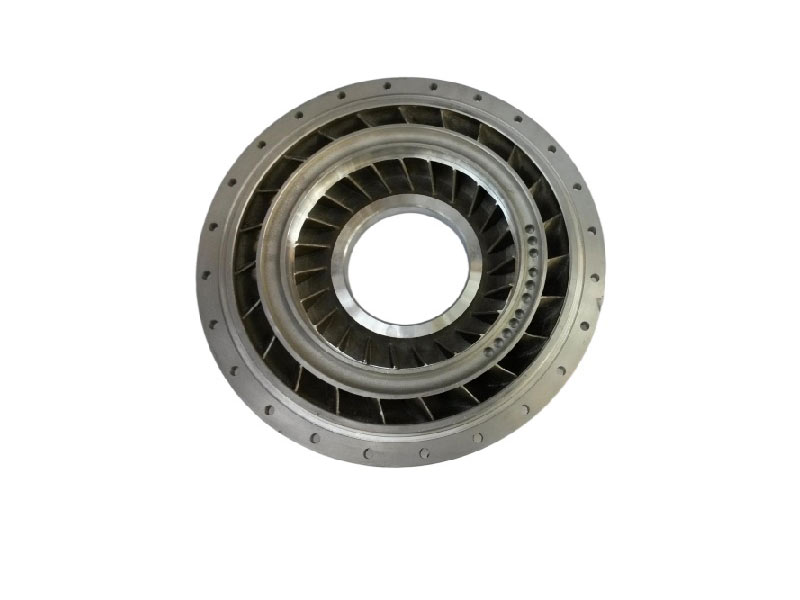

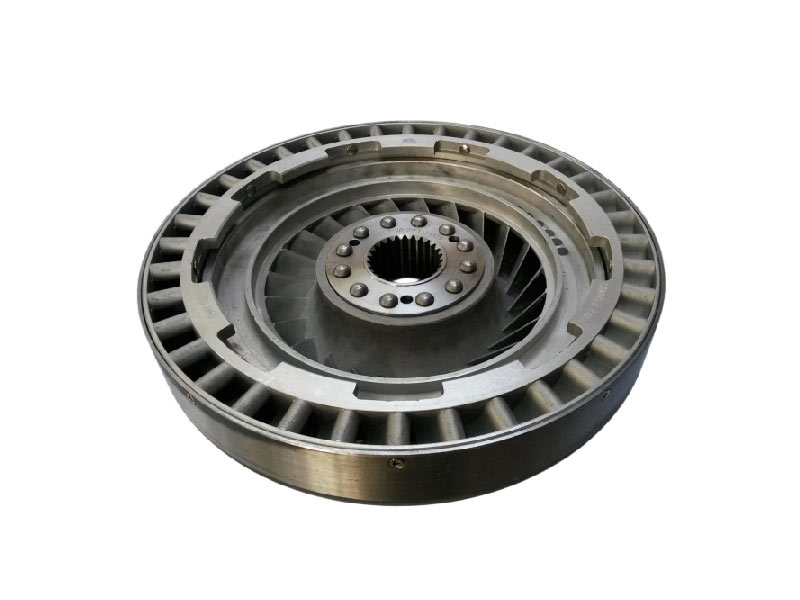

Turbine

Product Introduction

The turbine is the core power driven element inside the hydraulic torque converter, forming a three-element transmission structure with the pump impeller and guide impeller. It converts hydraulic energy into mechanical energy by relying on the high-pressure transmission oil ejected by the pump impeller to impact the blades, outputting power to the transmission to achieve smooth starting, automatic torque increase, and shock absorption.

Made with high-precision aerospace-grade cast aluminum, the blades feature precise die-cast curved surfaces and a streamlined design. After dynamic balancing and surface strengthening treatment, they boast high strength, good toughness, and are not prone to deformation or blade cracking. They offer high transmission efficiency, smooth operation, resistance to high oil temperatures, and cavitation resistance. Dimensions and assembly positions are completely compatible with the original equipment manufacturer (OEM), ensuring strong interchangeability. It can directly replace the original vehicle turbine and is suitable for repairing and assembling various loader torque converters.

Application Scenarios

• Construction Sites: Earthmoving, site leveling, frequent low-speed heavy-load starts; the turbine’s flexible transmission ensures smooth starting without stalling and strong power output.
• Mining and Quarrying: Steep slopes, heavy-load climbing, and bumpy/impact conditions; the turbine, in conjunction with the torque converter, automatically increases torque, bearing heavy loads without damage.
• Sand and gravel yards, coal yards, and mixing plants: Suitable for long-term continuous idling and high-frequency start-stop operations, ensuring stable turbine operation, low temperature rise, and resistance to cavitation failure.
• Complete machine maintenance and overhaul: Suitable for individual replacement of torque converters with internal damage, cracks, or wear on 3-ton, 5-ton, 6-ton, and 7-ton wheel loaders.
• Harsh high-temperature operating conditions: Adaptable to dusty, high-oil-temperature outdoor environments, corrosion-resistant, and anti-aging, extending the overall service life of the torque converter.
