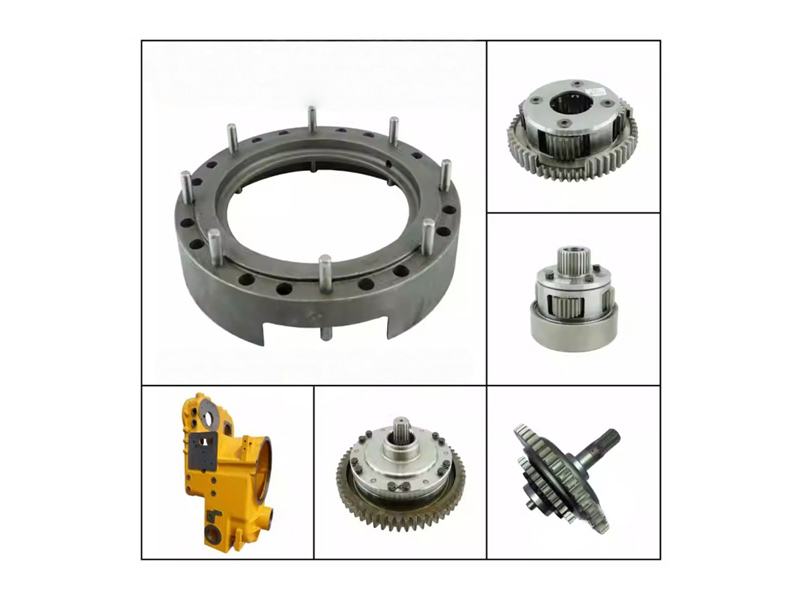

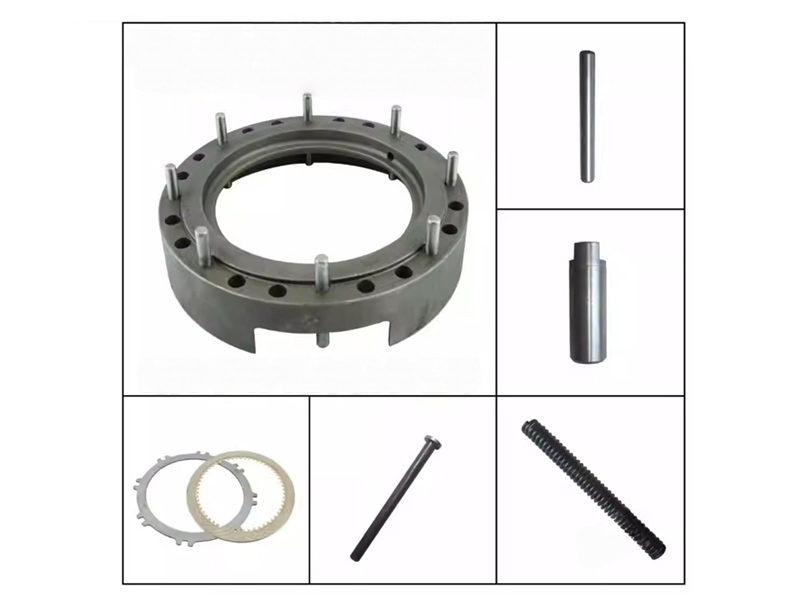

Isolation frame

Product Introduction

The isolating bracket is a crucial positioning and isolation support component inside the loader gearbox. It is primarily used for spacing and limiting the distance between gears, bearings, and friction plates, preventing axial movement and mutual friction and collision, and ensuring uniform clearance and stable concentric operation of all transmission components.

Made of high-strength precision-cast steel in one piece, it undergoes precision machining and leveling to prevent deformation and warping. The surface is smooth and burr-free, with high compressive strength, wear resistance, and impact resistance. It is resistant to high-temperature oil immersion without corrosion. With standard dimensions and high flatness, it ensures a tight fit, effectively reducing gearbox noise, jamming, and uneven wear. It is a factory standard specification with strong interchangeability, allowing for direct installation and use after repair or replacement.

Application Scenarios

• Construction Sites: Frequent gear shifting and start-stop vibrations; the stable isolation frame limits movement, preventing gear and bearing misalignment and ensuring smoother transmission.
• Mining and Quarrying: Heavy-duty climbing, bumpy, and high-vibration conditions; pressure-resistant and deformation-free, maintaining its shape and preventing loosening or failure under long-term stress.
• Sand and Gravel Yards, Coal Yards, and Mixing Plants: Long-term continuous high-load operation; oil-temperature resistant and wear-resistant, maintaining constant internal clearances and reducing failure rates.
• Gearbox Repair and Maintenance: Suitable for overhauling and replacing parts in 3-ton, 5-ton, 6-ton, and 7-ton loader gearboxes.
• Harsh, Dusty, and High-Temperature Conditions: Oil-resistant, corrosion-resistant, and anti-aging; adaptable to long-term high-temperature and oil-immersion working environments.
