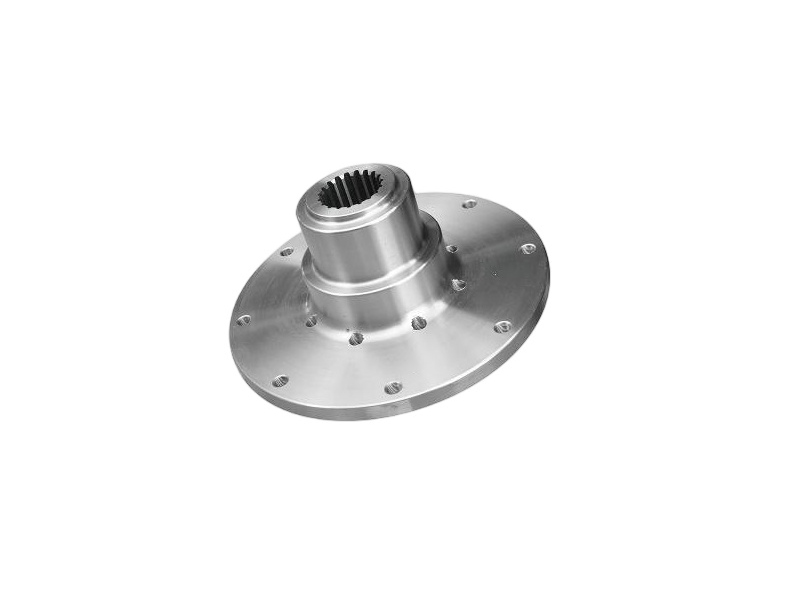

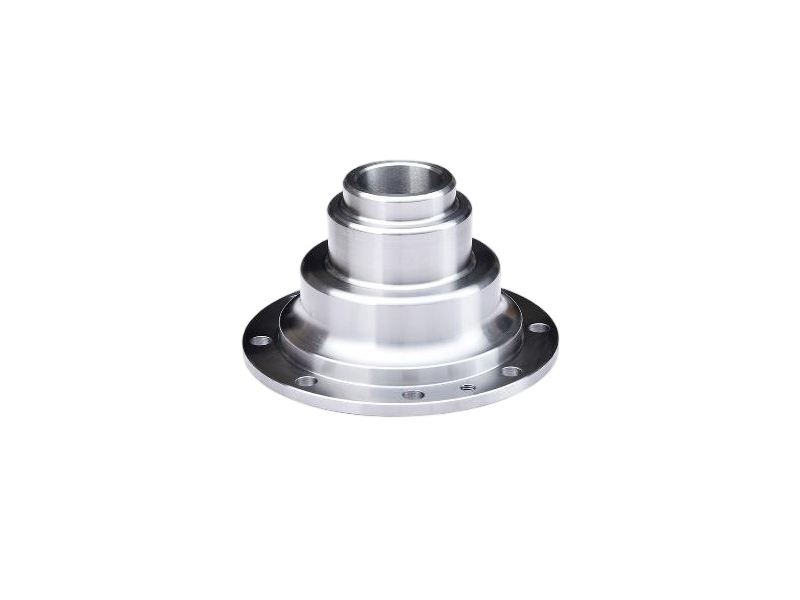

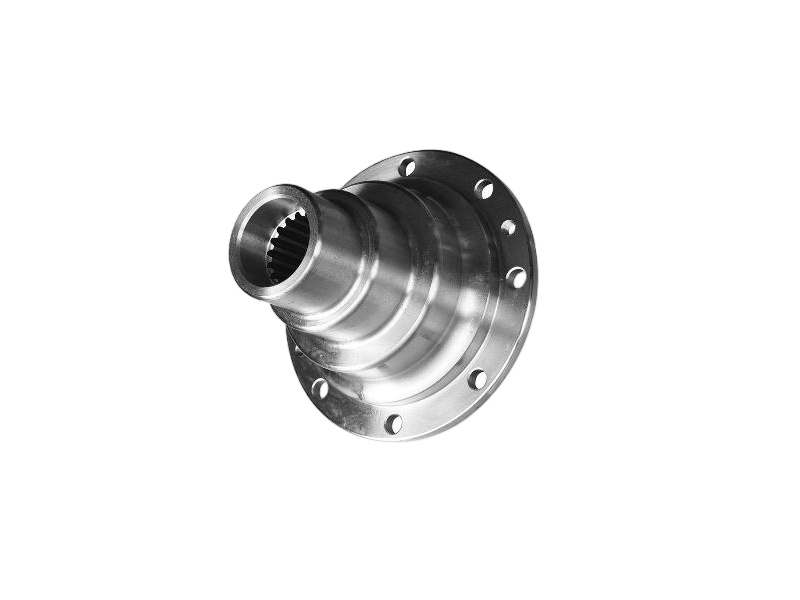

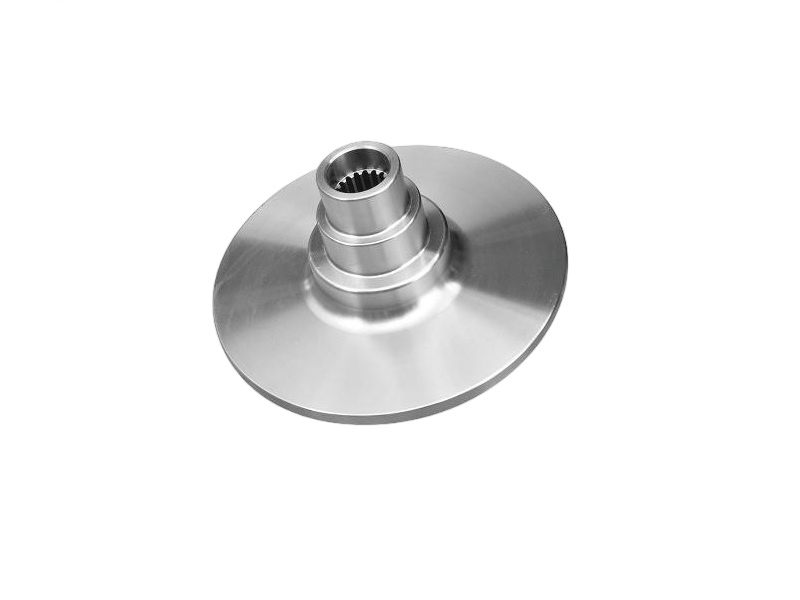

Handbrake flange

Product Introduction

The handbrake flange is a key connecting and transmission component in the loader’s parking brake system. It is mainly used for positioning and torque transmission between the handbrake and the drive shaft and brake housing, serving to connect and fix, provide concentric positioning, and ensure smooth transmission.

Made of high-strength carbon steel in one piece forging, precision machined and surface-ground, the flange boasts high flatness, high strength, and resistance to pressure and torsion, making it resistant to deformation and cracking. The flange holes are precise, with good coaxiality, ensuring a tight fit and eliminating looseness or misalignment in the braking transmission. It is vibration-resistant and fatigue-resistant, suitable for long-term parking and bumpy driving conditions. Original factory standard dimensions ensure strong interchangeability, allowing for direct installation and replacement after maintenance.

Application Scenarios

• Construction Sites: For parking on slopes and temporary parking on construction sites, the flange connection provides a secure and reliable braking transmission.
• Mining and Quarrying: For operation and parking on uneven roads, it withstands vibration and impact without deformation or displacement, maintaining braking accuracy.
• Sand and gravel yards, coal yards, and concrete mixing plants: Frequent start-stop cycles and prolonged idling can cause the machine to become loose and prone to failure due to long-term stress.
• Complete machine repair and maintenance: Compatible with handbrake repair and replacement for 3-ton, 5-ton, 6-ton, and 7-ton wheel loaders, and new machine assembly.
• Harsh working conditions: Adaptable to dusty, high-vibration, and complex field environments; corrosion-resistant and resistant to rust and deformation.
