Loader blade

Loader blade

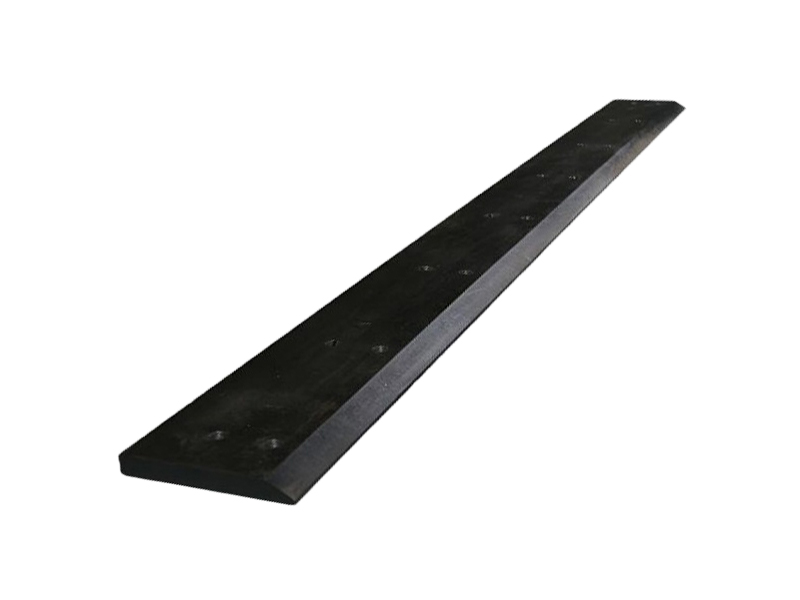

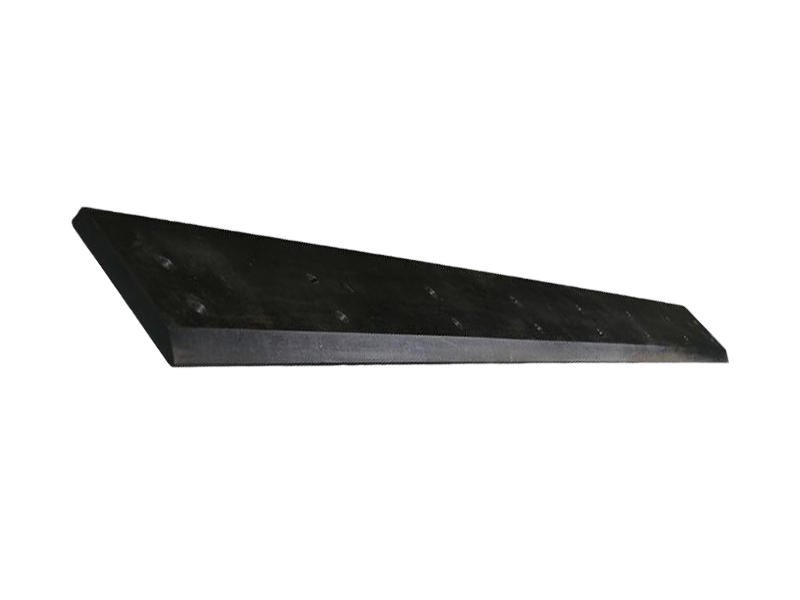

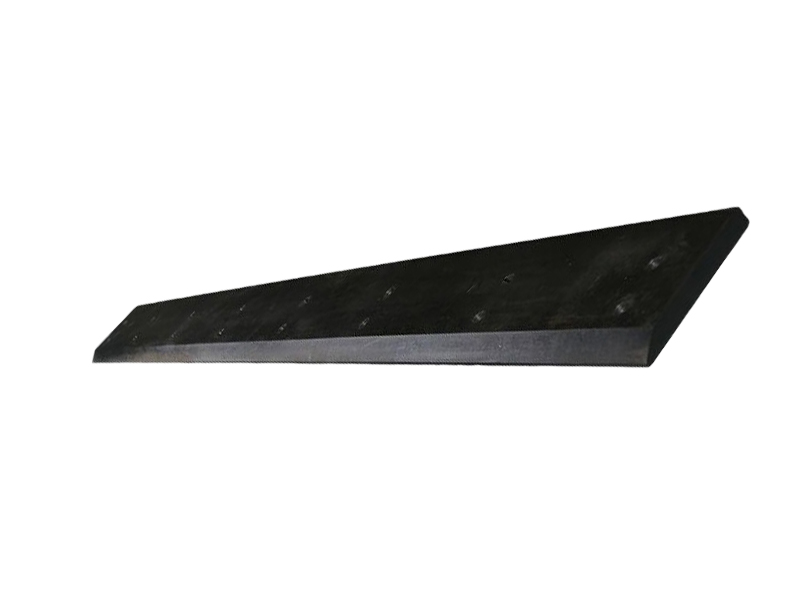

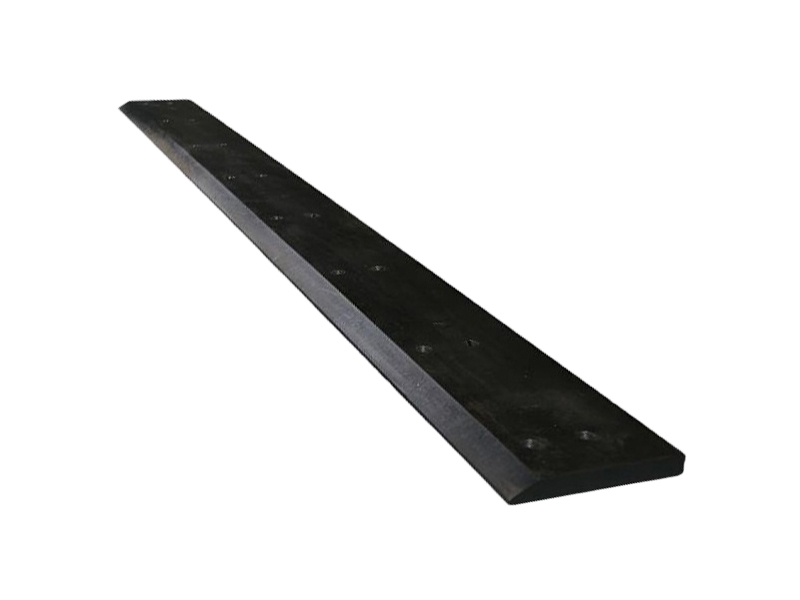

The loader blade is a key wear-resistant and easily damaged component of the loader bucket. Also called the blade edge, cutter corner plate, or main cutting edge, it is mainly installed on the front edge and sides of the bucket.

WhatsApp: +86 18356000469

Email: sales@qs-forklift.com

Product Description

Loader blade

The loader blade plays a crucial role in cutting into the soil, providing wear protection, and leveling and pushing materials. It is an important component ensuring the efficient operation of the loader in shoveling, leveling, and digging.

The product is forged from high-strength wear-resistant alloy steel, resulting in high overall hardness, good toughness, impact resistance, wear resistance, and resistance to deformation and breakage. After precision heat treatment and fine grinding, the cutting edge is sharp, reducing soil penetration resistance and making shoveling sand, ore, gravel, and slag easier.

The thickened and reinforced structural design provides strong bending and compressive strength, making it suitable for heavy-duty and harsh working conditions. A complete range of specifications and models are available to fit loader buckets of various tonnages and brands. Custom replacements of standard, reinforced, and rock-specific types are supported. Installation is convenient, and the service life is long, significantly reducing equipment maintenance and replacement costs. It is widely applicable to various scenarios such as construction sites, mining, stockpile loading and unloading, and road construction.

Product Specifications

  • Main Material: High manganese steel, NM360/NM400 wear-resistant steel, 65Mn spring steel
  • Heat Treatment Process: Overall quenching and tempering, high-frequency quenching of the cutting edge
  • Hardness: HRC 45–55
  • Characteristics: High wear resistance, impact resistance, not easy to chip, non-deformation
  • Standard Thickness: 16mm, 18mm, 20mm, 25mm, 30mm
  • Standard Width: 150mm, 180mm, 200mm, 220mm
  • Standard Length: Customized long strips to fit various loader models such as 30/50/60
  • Structure Type: Straight blade, curved blade, double-edged blade, rock-reinforced blade
  • Style: Flat edge, beveled edge, thickened and reinforced type
  • Installation Method: Bolt fixing, welding
